Oscar

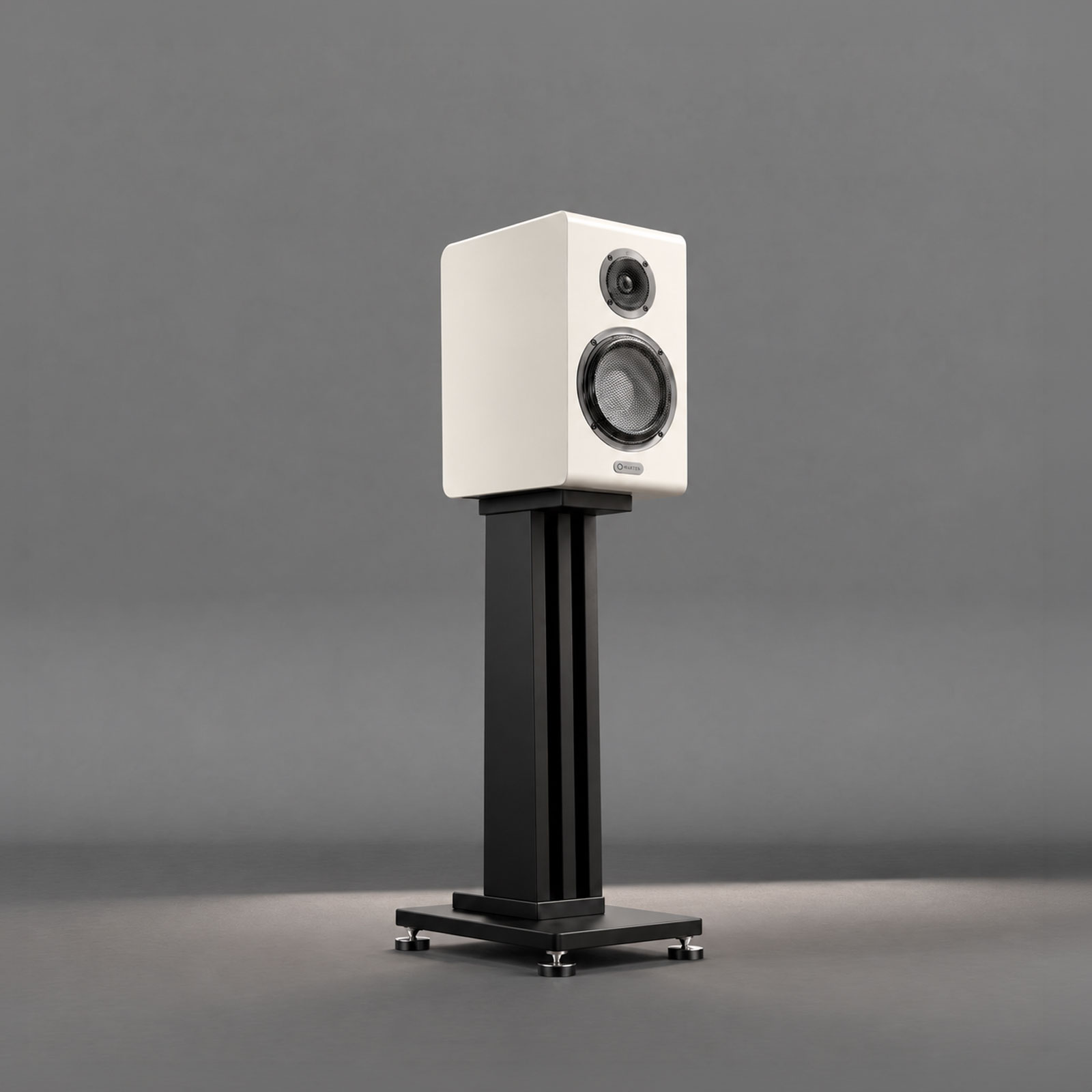

Marten Oscar Duo
$8,000 pair msrp
specifications
Drivers
1 x 1″ Ceramic
1 x 7″ Ceramic
Frequency range
37-20,000 Hz +-3dB
Power rating
150 W
Sensitivity
86 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Type
2-way
Crossover frequency
Second order 2500 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma Design
Cabinet
25 mm fibre laminate Matte Walnut, Piano Black or White
Dimensions W x H x D
7.9 x 15.7 x 12.6″
Stand
11 x 25.9 x 15.7″
Spikes
1″
Net weight speaker
29 lbs
Net weight stand
14.3 lbs

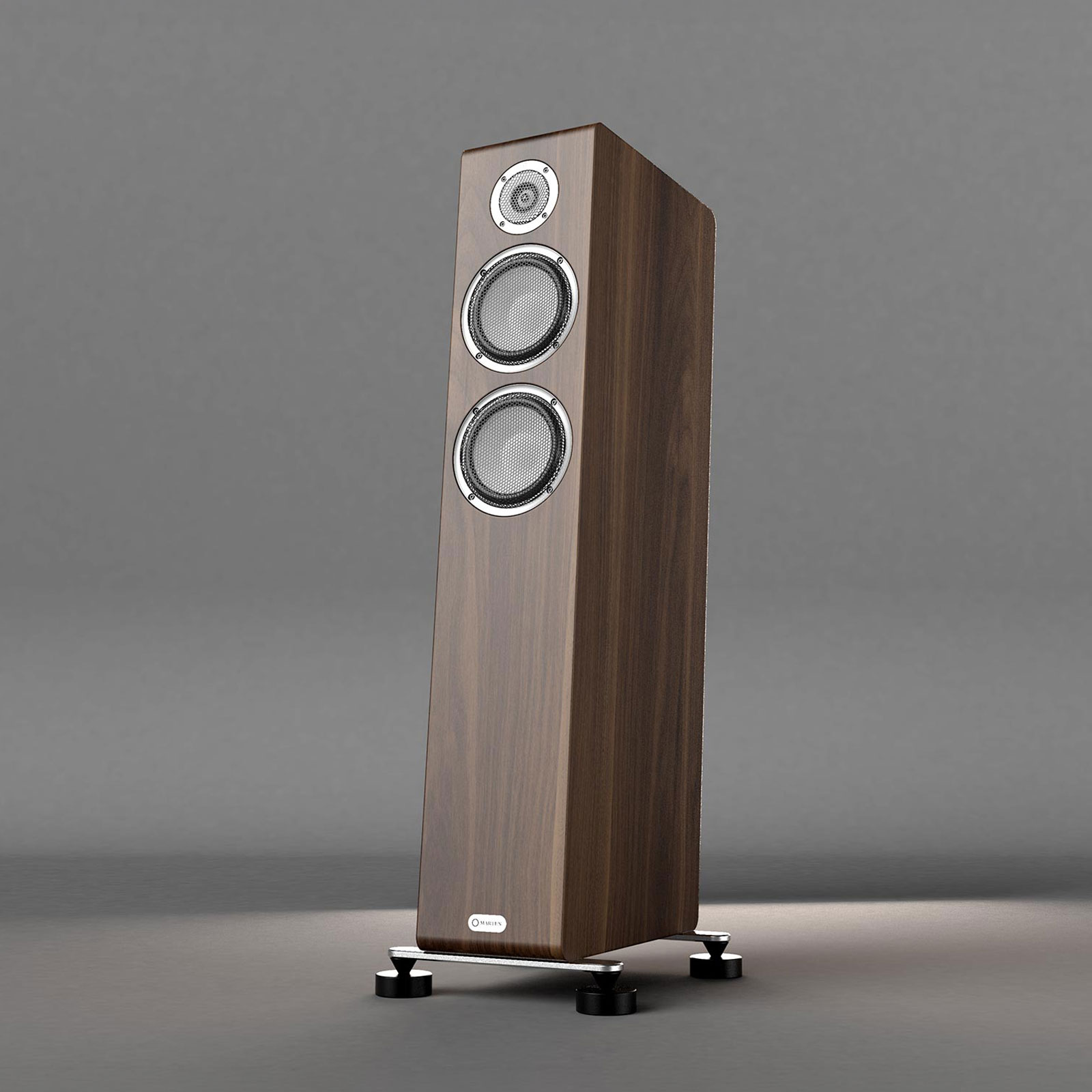

Marten Oscar Trio
$13,000 pair msrp
specifications
Drivers
1 x 1″ Ceramic
2 x 7″ Ceramic
Frequency range
27-20,000 Hz +-3dB
Power rating
250 W
Sensitivity
89 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Type
2-way
Crossover frequency
Second order 2500 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma Design
Cabinet
25 mm fibre laminate Matte Walnut, Piano Black or White
Dimensions W x H x D
7.9 x 42.9 x 15.7″
Stand
Brushed Aluminium with Marten Pucks and Cones
Net weight
67 lbs
Parker

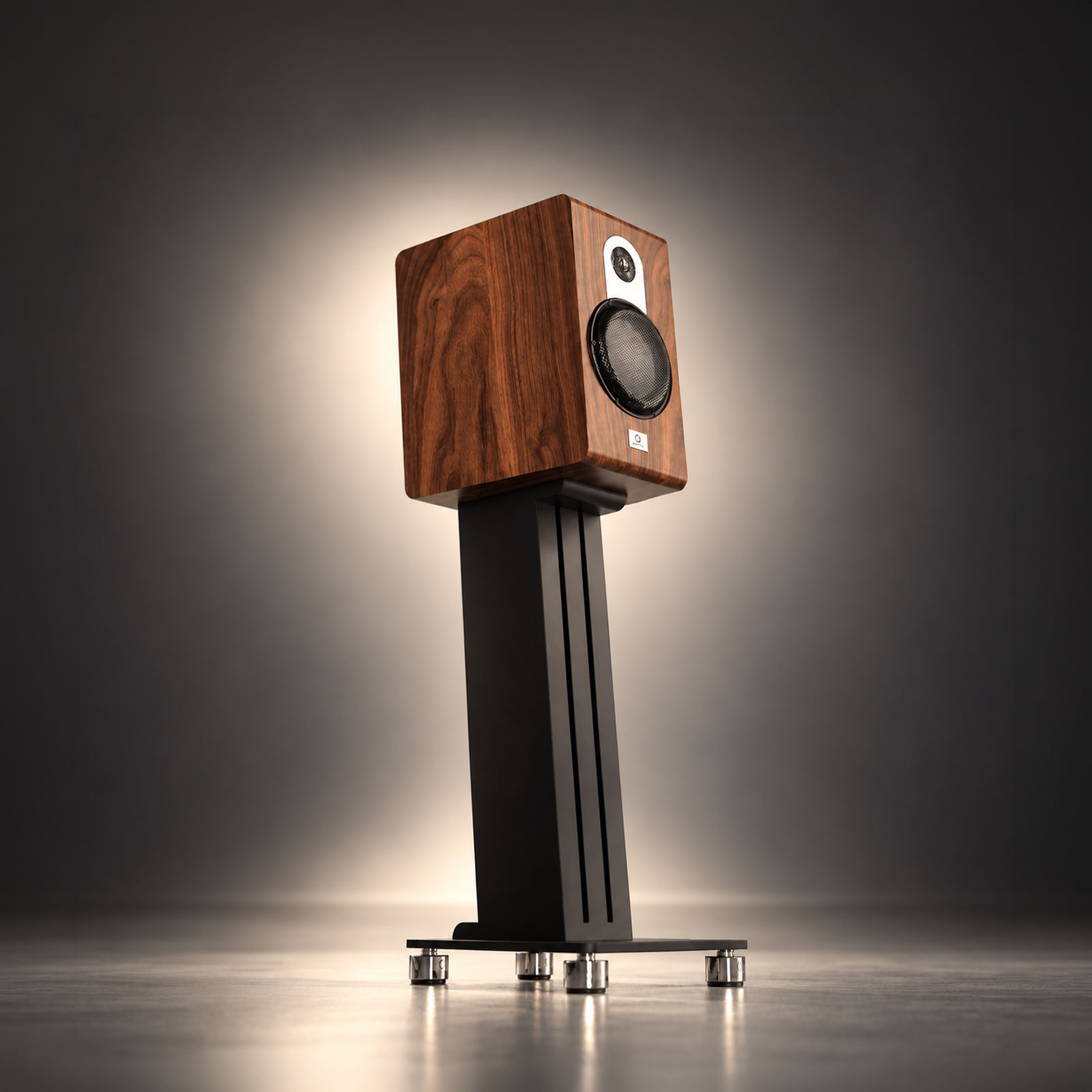

Marten Parker Duo
$14,000 pair msrp
Diamond $26,000 pair msrp
specifications
Drivers (front)
1″ pure ceramic tweeter (upgradable to Diamond)
7.5″ ceramic bass/midrange
Drivers (back)
9″ aluminum passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
36-40,000 Hz +-3dB
Power rating
200 W
Sensitivity
88 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Type
2-way
Crossover frequency
Multi diverse order, 2200 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M board
Piano Walnut, Matte Walnut, Piano Black, Piano White
Stands and feet (optional)
Matte black with mirror polished Marten isolators
13.8- 11 x 29.5 x 15.7″
46 pounds
Dimensions
8.7-11 x 16.5 x 14.2″
Net weight
40 lbs

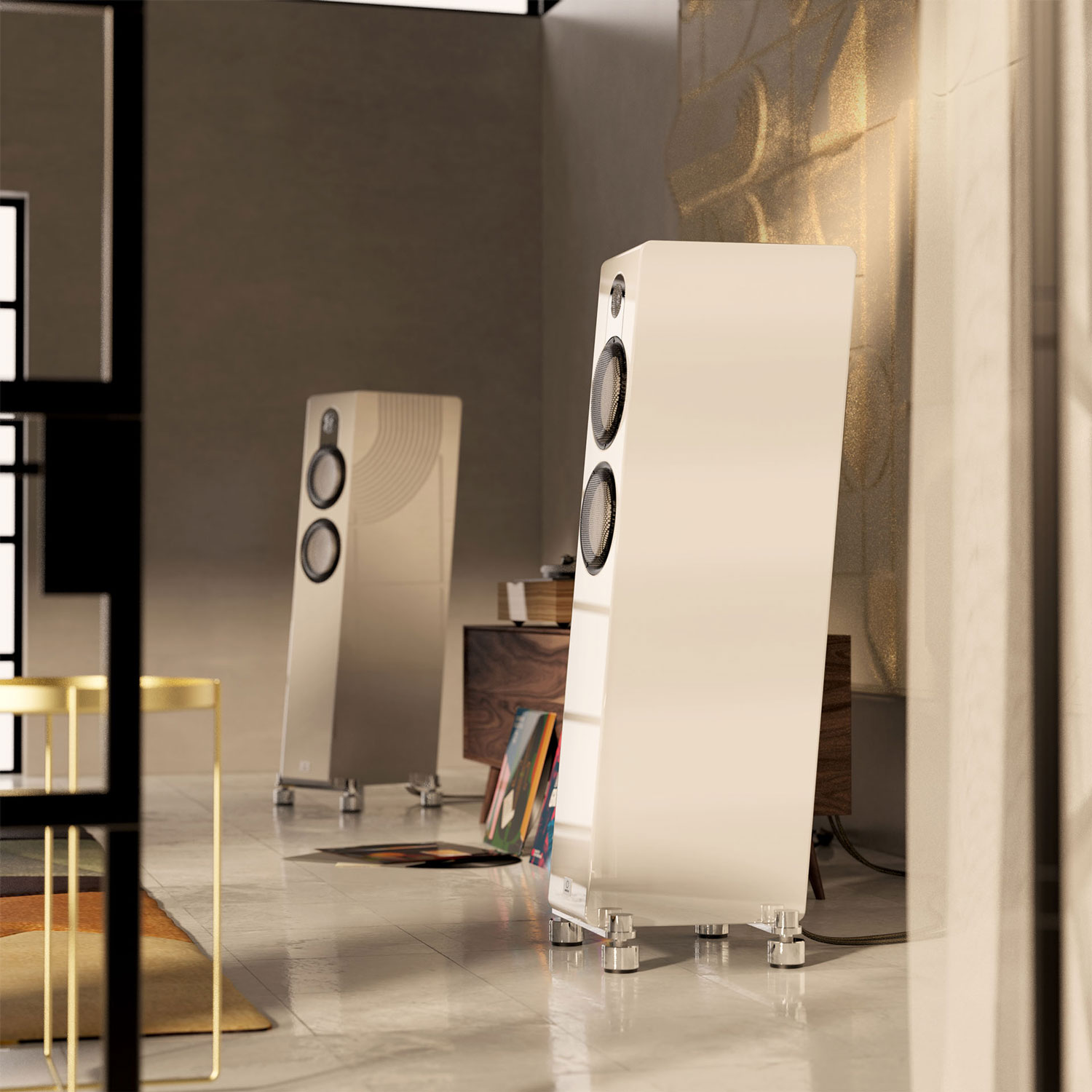

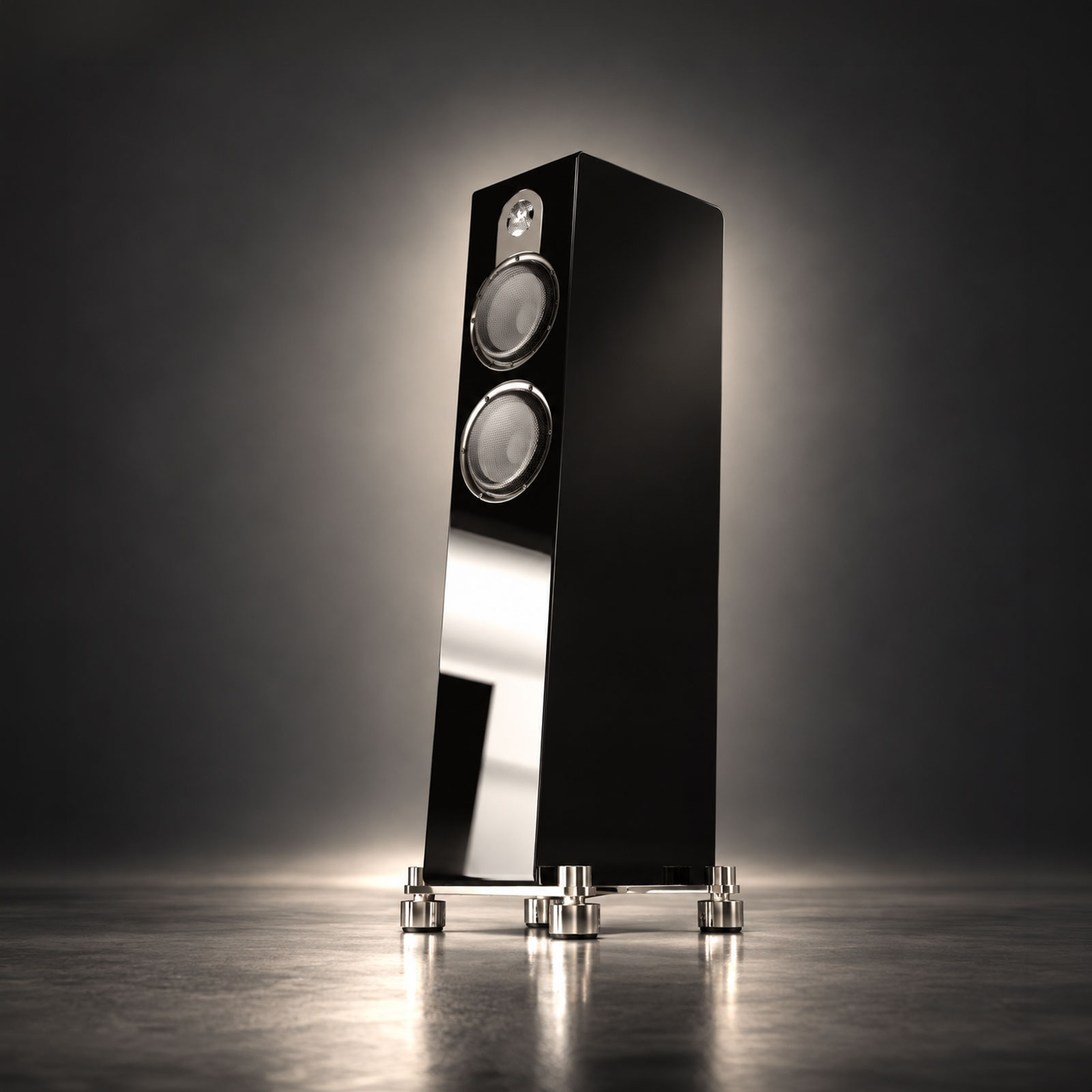

Marten Parker Trio
$25,000 pair msrp
Diamond $40,000 pair msrp
specifications
Drivers (front)
1″ pure ceramic tweeter (upgradable to Diamond)
2 x 7.5″ ceramic bass/midrange
Drivers (back)
2 x 9″ aluminum passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
26-40,000 Hz +-3dB
Power rating
300 W
Sensitivity
91 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Type
2.5 -way
Crossover frequency
Multi diverse order, 2200 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M board
Piano Walnut, Matte Walnut, Piano Black, Piano White
Stands
Mirror polished stainless steel with Marten isolators
Dimensions
8.7- 11 x 46 x 14.2″
Net weight
89 lbs

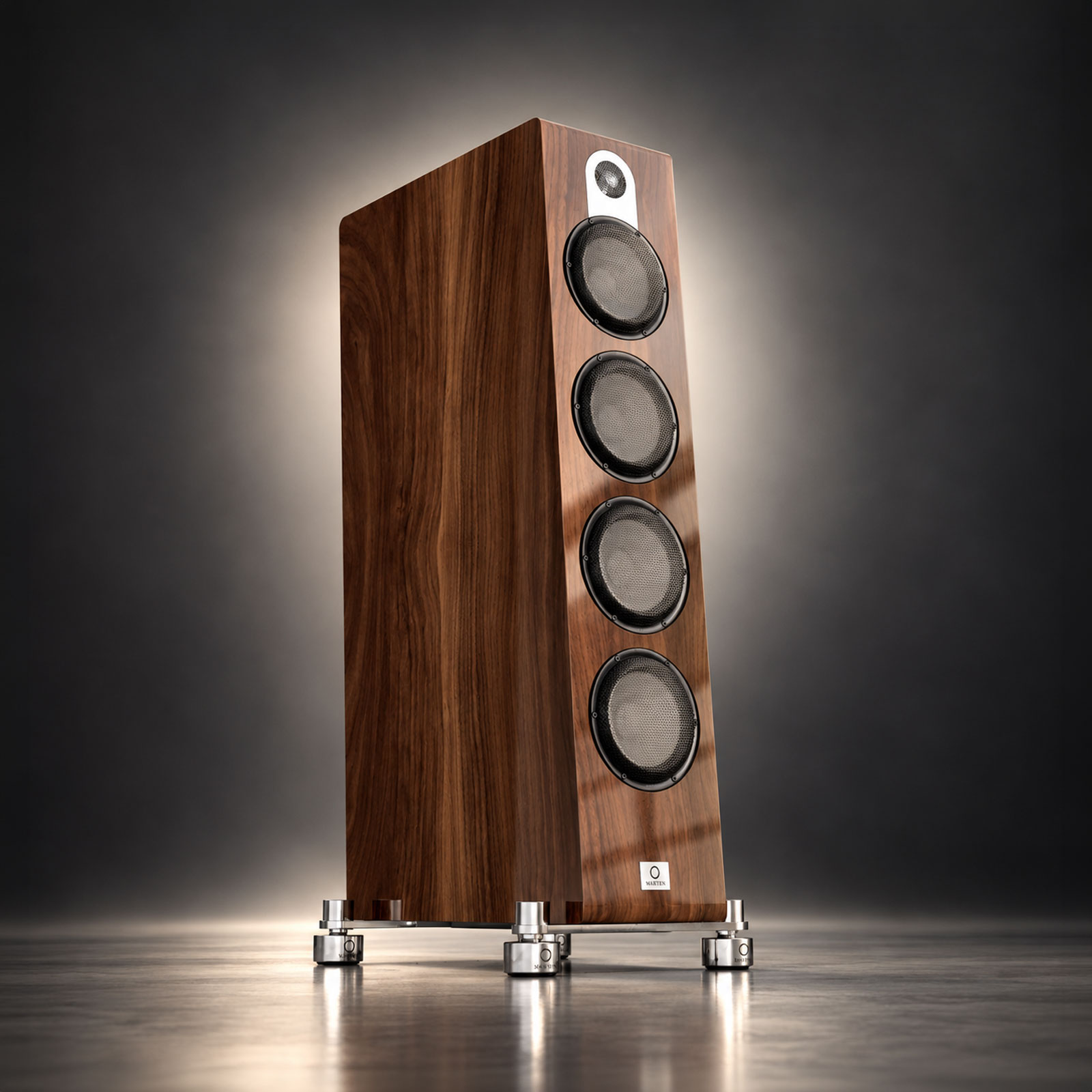

Marten Parker Quintet
$37,000 pair msrp
Diamond $54,000 pair msrp
specifications
Drivers (front)
1″ pure ceramic tweeter (upgradable to Diamond)
4 x 7.5″ ceramic bass/midrange
Drivers (back)
4 x 9″ aluminum passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
24-40,000 Hz +-3dB
Power rating
350 W
Sensitivity
93 dB / 1 m / 2.83V
Impedance
4 ohm (2.7 Ohm min)
Type
2.5 -way
Crossover frequency
Multi diverse order, 2200 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M board
Piano Walnut, Matte Walnut, Piano Black, Piano White
Stands
Mirror polished stainless steel with Marten isolators
Dimensions
9.4-13 x 46 x 21.3″
Net weight
133 lbs
Mingus

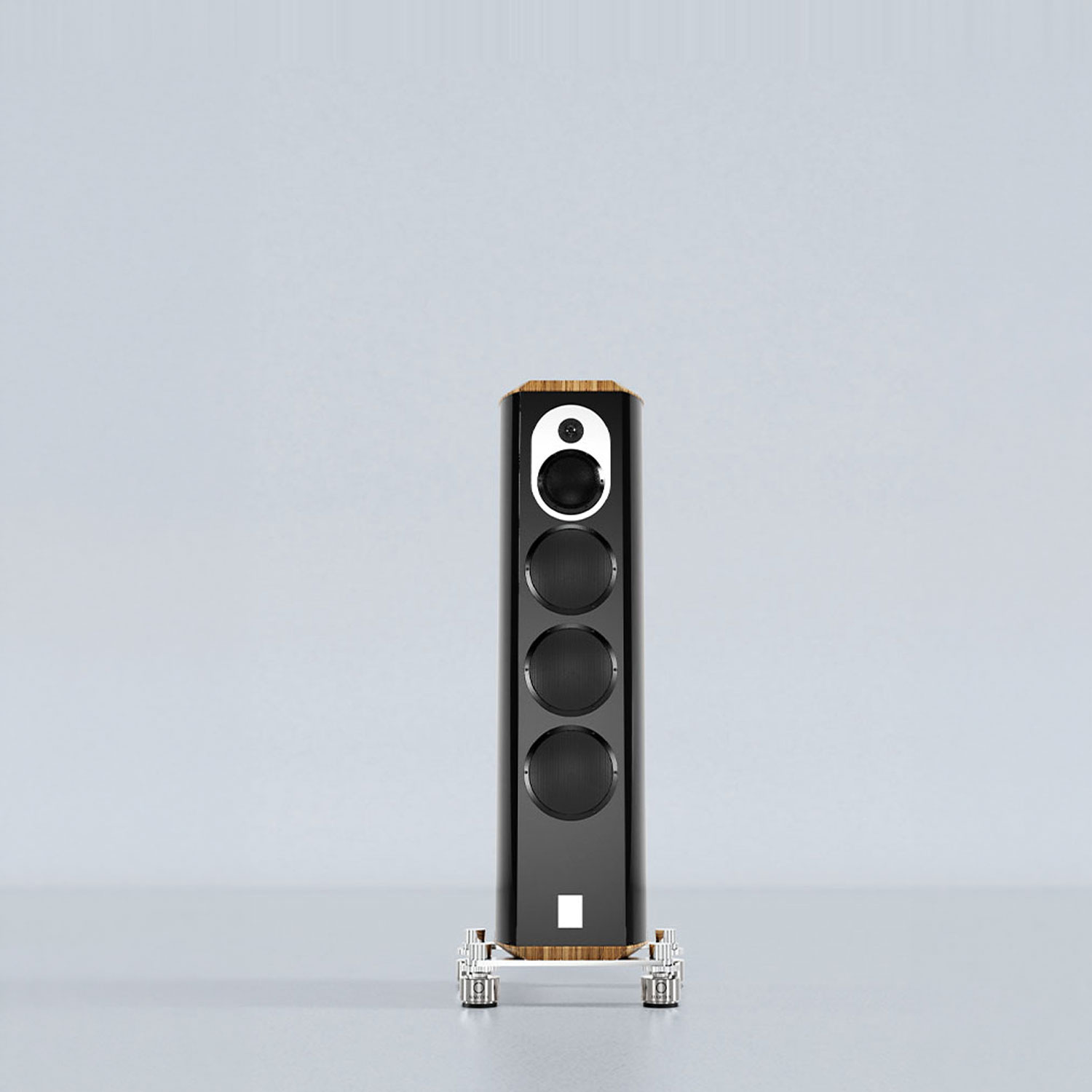

Marten Mingus Quintet 2
$78,000 pair msrp
Statement $91,000 pair msrp
specifications
Drivers (front)
.75″ diamond tweeter
5″ ceramic midrange
3 x 7″ aluminum sandwich woofers
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
24-100,000 Hz +-3dB
Power rating
300 W
Sensitivity
88 dB / 1 m / 2.83V
Impedance
6 ohm (3.4 Ohm min)
Type
3 -way bass reflex
Crossover frequency
First order: 300 & 4,000 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma
Cabinet
25 – 40mm S fibre laminate cabinet; solid wood top and bottom; advanced damping mat
Stands
Mirror polished stainless steel with Marten isolators
Dimensions
11 x 42.9 x 15″
Net weight
140 lbs

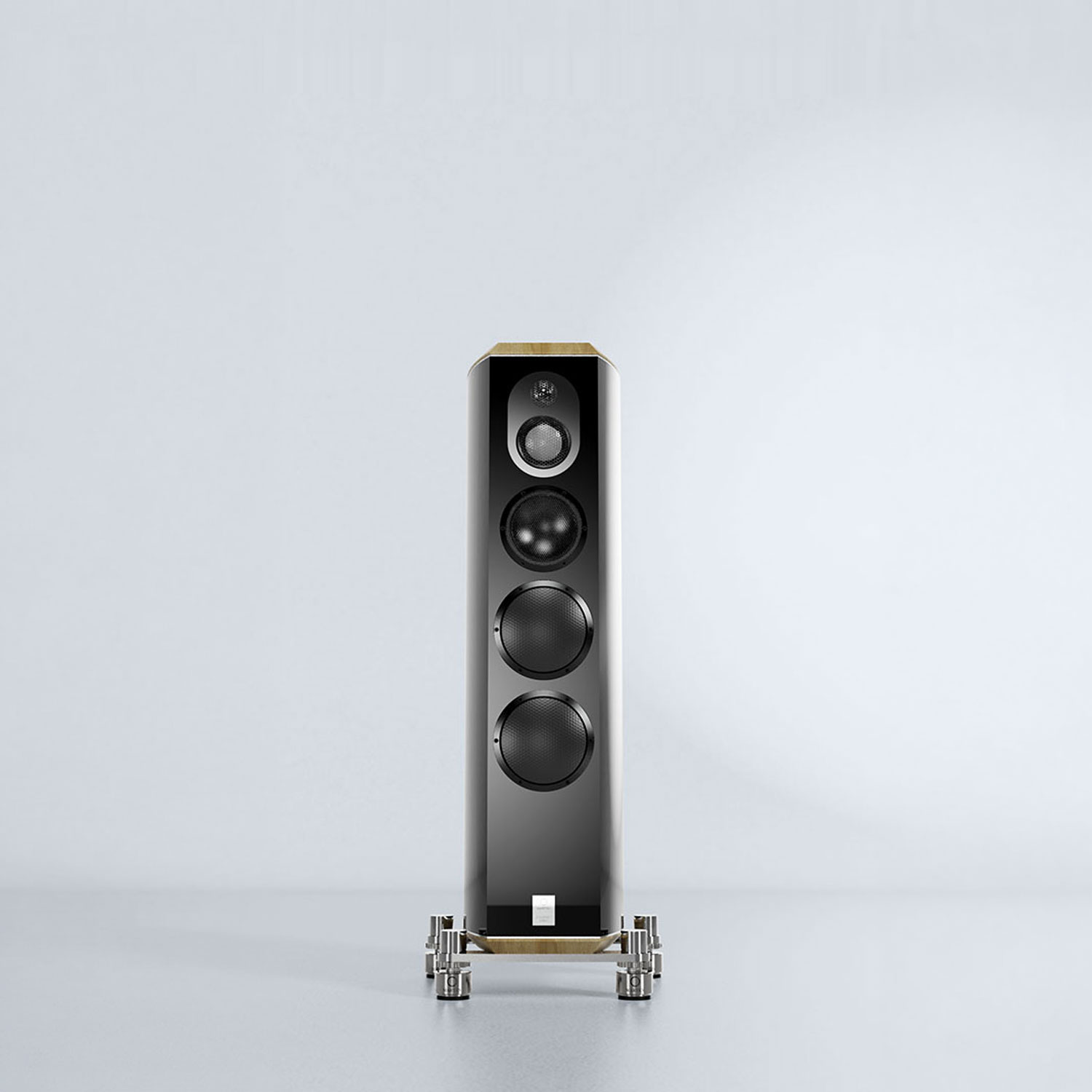

Marten Mingus Septet
$140,000 pair msrp
Statement $160,000 pair msrp
specifications
Drivers (front)
1″ pure diamond
3″ pure beryllium
7″ pure ceramic
2 x 7″ aluminum sandwich
Drivers (back)
2 x 10″ passive aluminum sandwich
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
23-40,000 Hz +-3dB
Power rating
300 W
Sensitivity
88 dB / 1 m / 2.83V
Impedance
4 ohm (2.7 Ohm min)
Type
4 -way
Crossover frequency
First order: 200, 800, 6,000 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma (optional statement)
Cabinet
25 – 40mm fibreboard laminate cabinet in piano black; tops and bottoms in solid wood or lacquered in different colors; advanced damping mat
Stands
Mirror polished stainless steel with Marten isolators
Dimensions
13.2″ x 49.6″ x 18.1″
Net weight
211 lbs

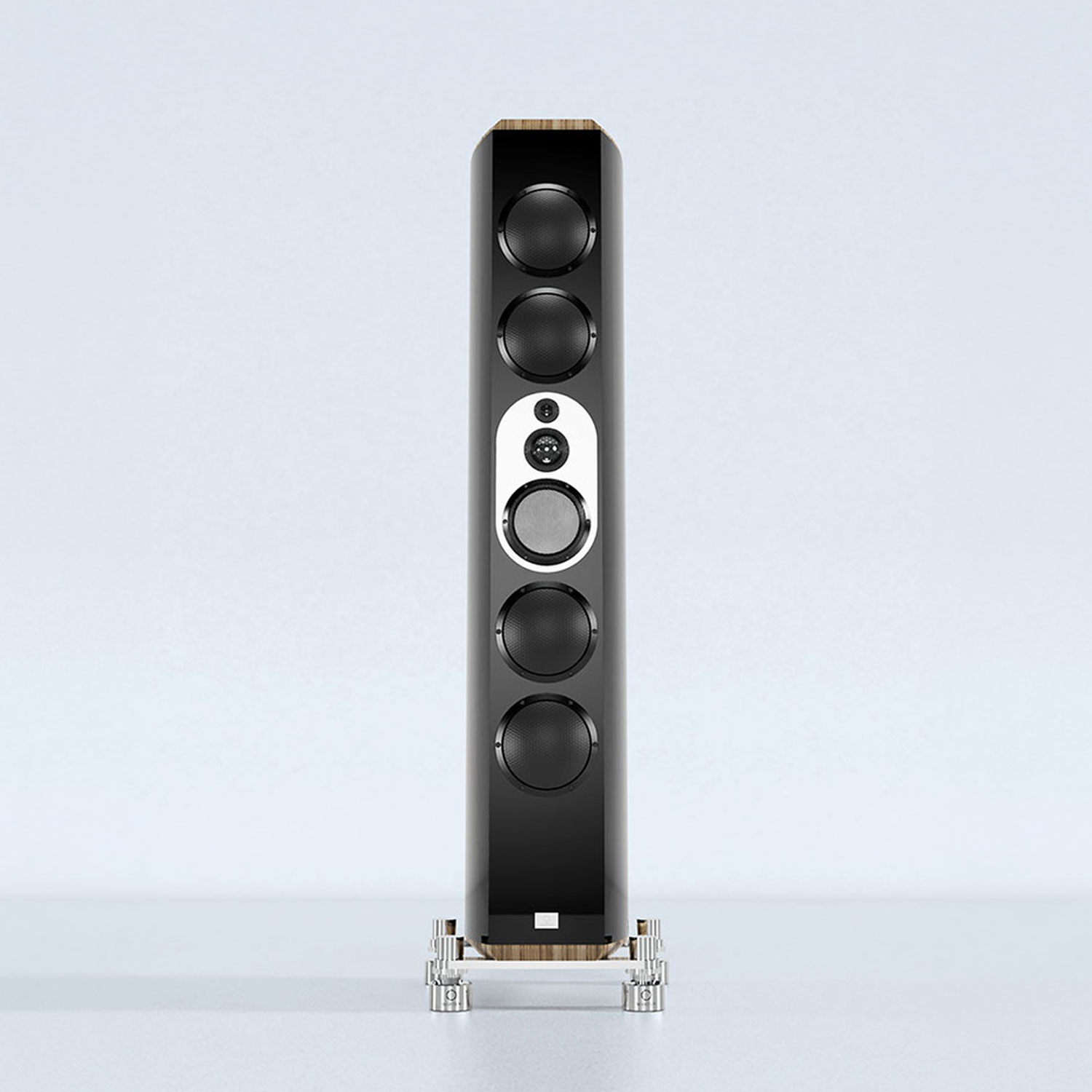

Marten Mingus Orchestra
$260,000 pair msrp
Statement $280,000 pair msrp
specifications
Drivers (front)
.75″ pure diamond
2″ pure diamond
7″ pure ceramic
4 x 8″ aluminum sandwich
Drivers (back)
4 x 10″ passive aluminum sandwich
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
22-100,000 Hz +-3dB
Power rating
300 W
Sensitivity
89 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Type
4 -way
Crossover frequency
First order: 350, 3,800, 8,000 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma (optional statement)
Cabinet
25 – 42mm fibre laminate cabinet in piano black; tops and bottoms in solid wood or lacquered in different colors; advanced damping mat
Stands
Mirror polished stainless steel with Marten isolators
Dimensions
113.2 x 68.1 x 21.3″
Net weight
288 lbs
Coltrane

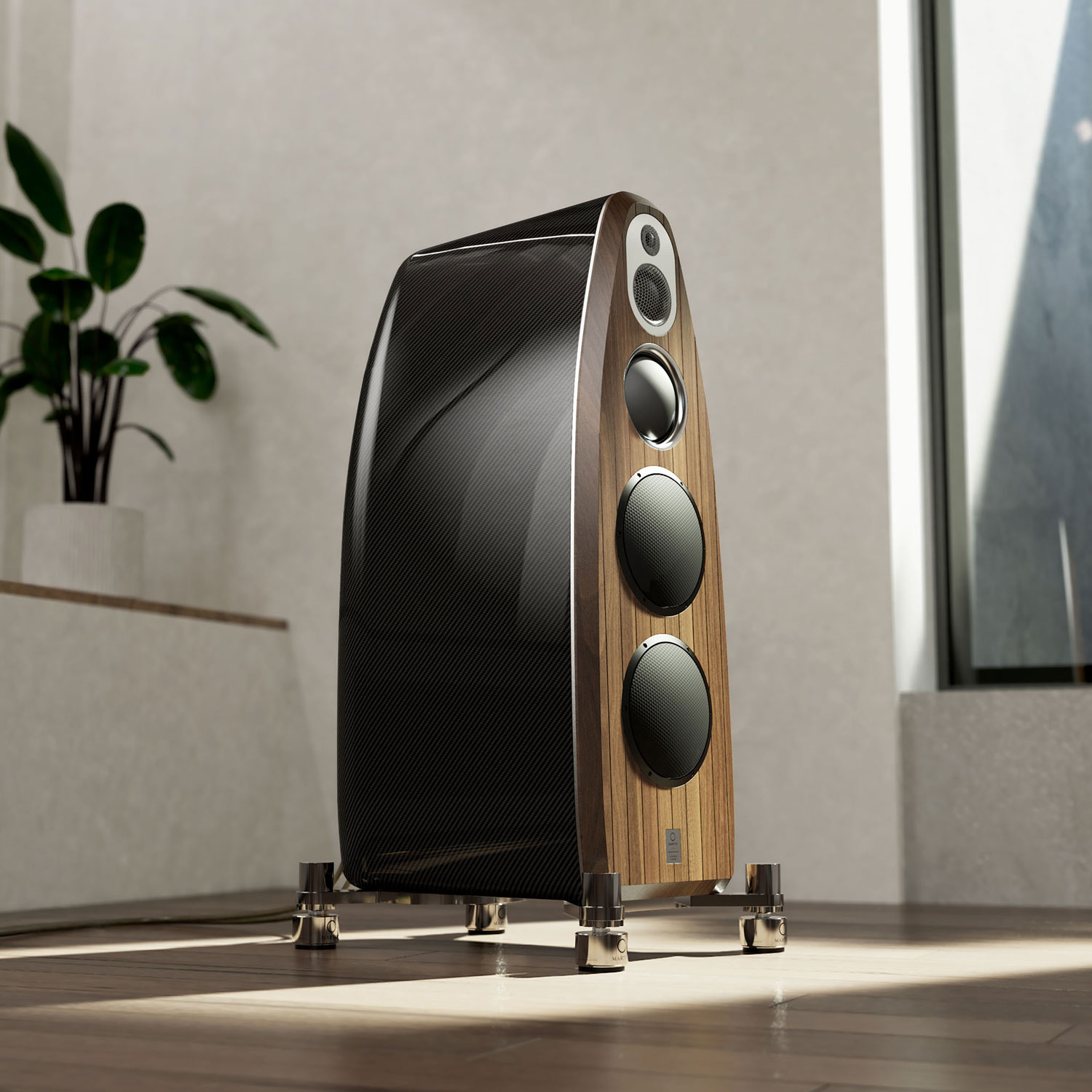

Marten Coltrane Quintet
$200,000 pair msrp
Statement $220,000 pair msrp
specifications
Drivers (front)
1″ pure diamond
3″ pure beryllium
7″ carbon fibre
2 x 10″ aluminum sandwich
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
18-60,000 Hz +-3dB
Power rating
350 W
Sensitivity
89 dB / 1 m / 2.83V
Impedance
4 ohm (3.0 Ohm min)
Type
4 -way bass reflex
Crossover frequency
First order: 170, 1000, 6000 Hz
Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma (optional statement)
Cabinet
220 – 30mm carbon fibre laminate piano lacquer with front baffle in a sandwich with aluminum, fibre board and solid wood
Stands
Mirror polished stainless steel with Marten isolators
Dimensions
16.2 x 47.4 x 29.1”
Net weight
255 lbs
Marten Coltrane Momento 2
$410,000 pair msrp
Statement $430,000 pair msrp

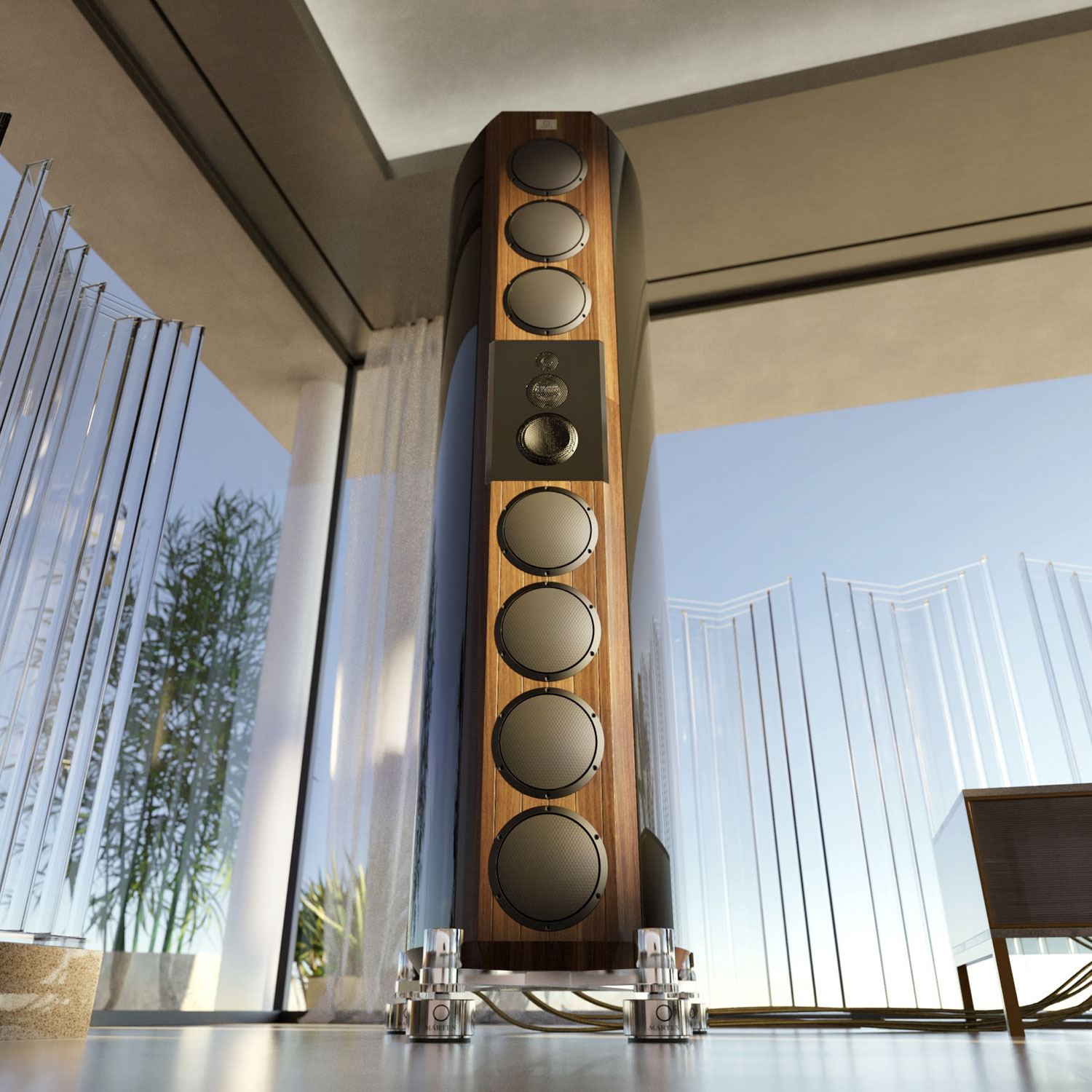

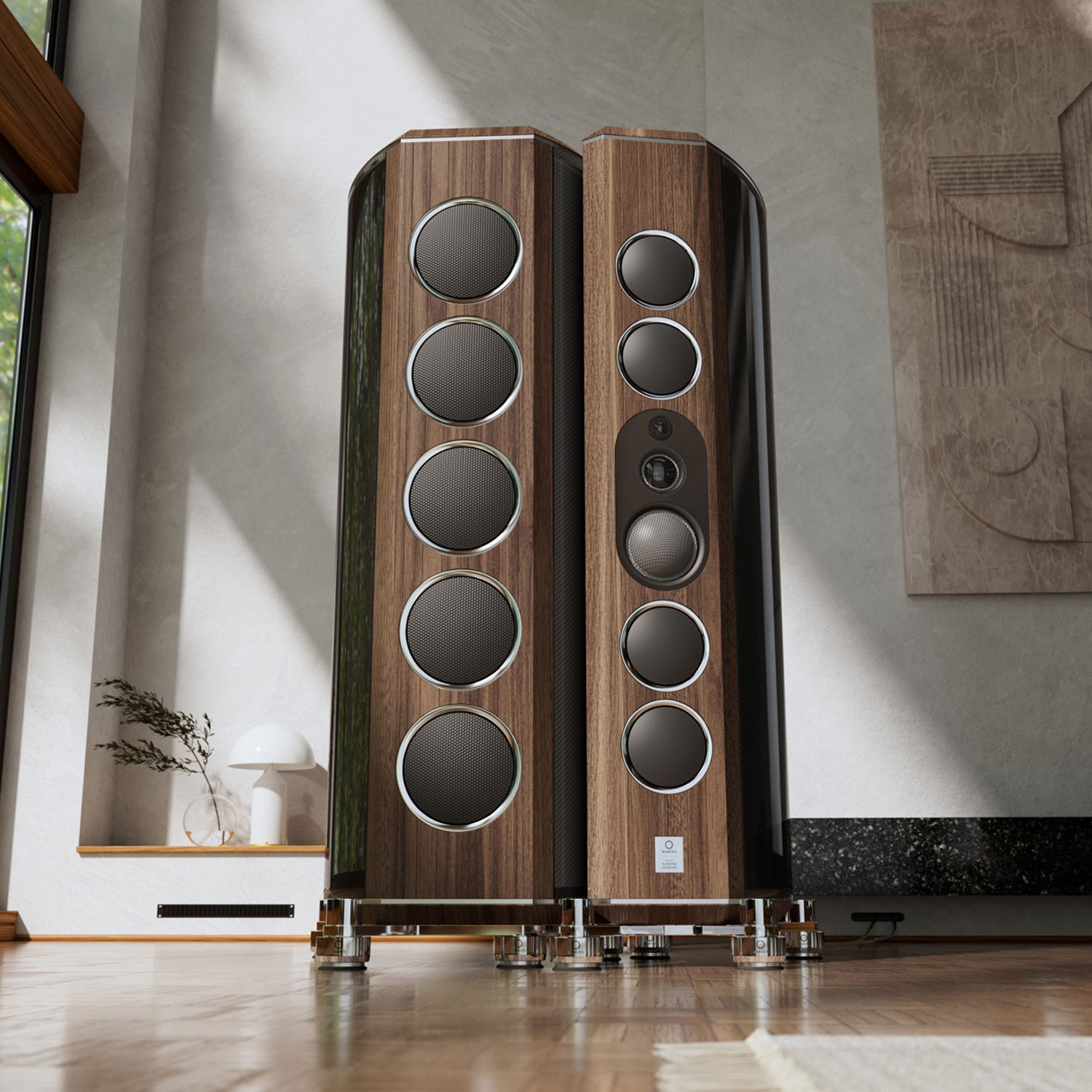

Marten Coltrane Supreme 2
$580,000 pair msrp
